Ceiling Fan

CELING DROP DOWN TYPE

HUGGER METAL ROD
  • More Aesthetic
  • Seamless (easier maintenance)
  • Some models have shorter dropdown (Best for false ceiling)
  • Drop down length is DEFAULT
  • Default 4 inch rod
  • Different rod length can be purchased to achieve a lower drop down effects (for houses with high ceiling), depending on availability and model



Disclaimer: All information provided are meant for referrance only. Hoe Kee will not be held responsible for any liabilities, damages, inconvenience (not limited to) as a result of misrepresentation or wrong use of information.


CEILING DROP DOWN LENGTH

Do I need a longer drop down ?

Rod Length Option Ceiling Height
12 inch / 1 feet rod 3.3 m ≤
24 inch / 2 feet rod 3.6 m ≤
32 inch / 3 feet rod 3.9 m ≤ ( CALL TO ENQUIRE)
Custom rod length CALL TO ENQUIRE
I will use the 4 inch rod below 3 m



Disclaimer: All information provided are meant for referrance only. Hoe Kee will not be held responsible for any liabilities, damages, inconvenience (not limited to) as a result of misrepresentation or wrong use of information.

HOW TO SIZE YOUR CEILING FAN IN 3 EASY STEPS

Disclaimer: All information provided are meant for referrance only. Hoe Kee will not be held responsible for any liabilities, damages, inconvenience (not limited to) as a result of misrepresentation or wrong use of information.

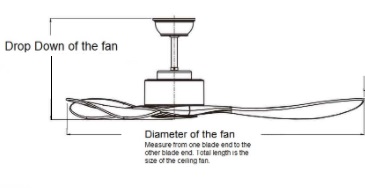

FAN DIAMETER SIZE

Fan Diameter Size:

Fan diameter size are measured based on end to end dimensions. When choosing the size of a fan, please take the following into considerations:

  1. Point of installation (where you want the fan to be mounted)
  2. Ensure that you have sufficient space (equivalent to the fan size) within the installation point.
  3. Consider any cupboard door clearance
  4. Consider any nearby light source that could potentially cast shadows
  5. Ensure a min clearance of 1 feet between the tip of the fan blade to the nearest wall / cupboard. This is to ensure max air circulation for the performance of the fan

    Firstly, as a general rule for optimal performance, a minimum clearance of 60cm – 80cm and above from the tip of the blades to the nearest ceiling fixture (e.g. as concise/false ceilings, L boxes/Beams, etc.) is required for the installation of a ceiling fan. This is to ensure better air circulation and cooling.



    Disclaimer: All information provided are meant for referrance only. Hoe Kee will not be held responsible for any liabilities, damages, inconvenience (not limited to) as a result of misrepresentation or wrong use of information.


The table below shows the example various sizes of Ceiling Fans and their required clearance:

Size of fan Minimum area needed
100cm (40 inch) 160 cm2 – 180 cm2
110cm (44 inch) 170 cm2 – 190 cm2
120cm (48 inch) 180 cm2 – 200 cm2
140cm (56 inch) 200 cm2 – 220 cm2
150cm (60 inch) 210 cm2 – 230 cm2

Disclaimer: All information provided are meant for referrance only. Hoe Kee will not be held responsible for any liabilities, damages, inconvenience (not limited to) as a result of misrepresentation or wrong use of information.

LIGHT OPTION
Things to consider:
  1. Are there any source of light for the area?
  2. Does the room require anymore light

*Not all model comes with light option.

*Fan prices may differ with or without Light (depends on Fan Brand)



Disclaimer: All information provided are meant for referrance only. Hoe Kee will not be held responsible for any liabilities, damages, inconvenience (not limited to) as a result of misrepresentation or wrong use of information.


INSTALL SERVICE FOR FAN

Estimated 3rd Party Install Charges (CASH Payable onsite upon install):

Install jobs are carried out by 3rd party installers who are not part of Hoe Kee Hardware Pte Ltd. We are not liable for any potential damages incurred as a result.

Standard installation includes connecting and mounting of the new fan on an existing electrical point. It will also include removal of your old ceiling fan. All other scopes of work such as reinforcement of the false ceiling, installation of new electrical point, supply of on & off switch will not be covered.

Kindly be noted that if your existing ceiling fan is using a speed regulator, the wiring of the speed regulator has to be bypassed (disconnected), if your purchase is a remote-controlled model. Speed regulator cannot be used on remote-controlled models. Otherwise, warranty will be voided.

In some cases, ceiling fans can be installed on false ceilings. However, this requires a false ceiling that has been re-enforced properly. Otherwise, our authorized installers can assist with the false ceiling re-enforcement if required. We would recommend that ceiling fans be mounted on the main ceiling rather than a false ceiling. This eliminates vibrations and noise which may occur when mounted on a false ceiling.

Now with all this information in hand should ultimately help you to find the right ceiling fan for your space and last for years and years.

Disclaimer: All information provided are meant for referrance only. Hoe Kee will not be held responsible for any liabilities, damages, inconvenience (not limited to) as a result of misrepresentation or wrong use of information.
